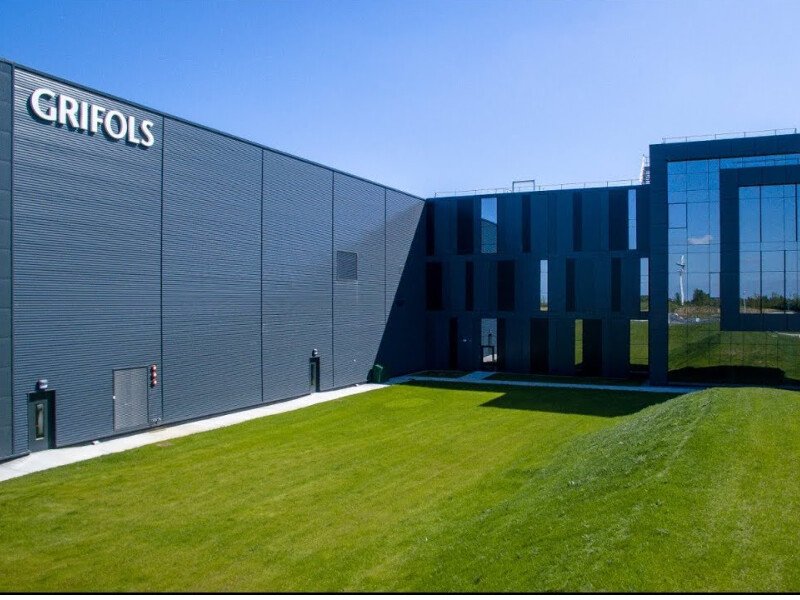

Sekilas tentang Grifols

Grifols merupakan perusahaan global dibidang kesehatan yang berada di Barcelona, Spanyol sejak tahun 1909. Grifols berusaha terdepan dalam bidang laboraturium transfuse, berkomitmen untuk meningkatkan kesadaran pelayanan dan memiliki portofolio yang diimplementasi atau dalam mendorong suatu pengolahan laboraturium menjadi berkualitas.
Produsen dan service center Grifols ada di lebih dari 100 negara di seluruh dunia.
Grifols, merupakan perusahaan yang didedikasikan untuk pengembangan dan kemajuan Pengobatan Transfusi sejak 1940, merancang dan membuat reagen, instrumentasi serta perangkat lunak yang sepenuhnya disesuaikan dengan tren di Laboraturium Imunohematologi.
Pada tahun 2005 Grifols kembali mengembangkan dan meluncurkan kartu gel generasi kedua, yaitu DG Gel System dimana merupakan pioneer dalam inovasi dengan 8 mikrotube sehingga dapat meningkatkan, fleksibilitas reagen dan instrumentasi, keamanan pemeriksaan dengan Sensitifitas dan Spesifitas yang tinggi serta efisiensi biaya yang optimal.

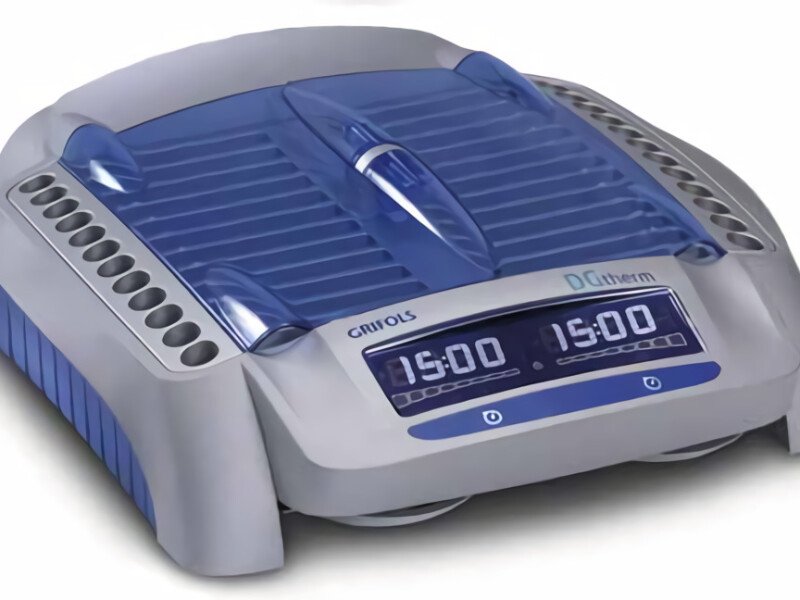

DG THERM GRIFOLS

Digital incubator
· 2 independent incubation zones
· Capacity for 12 DG Gel cards and 12 tubes each
· Digital on-screen display
· Fixed preset temperature of 37°C
· Adjustable, preset incubation time of 15 minutes
31 x 33 x 10 cm; 24 x 26 x 40 in
(W x D x H)
4 kg; 9 lb

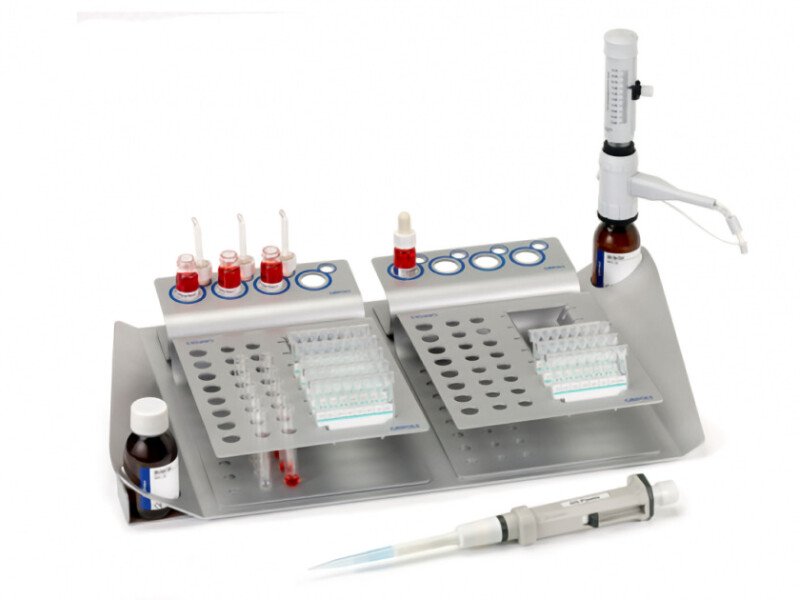

DG MANUAL STATION GRIFOLS

Work station
· Alumunium support for DG Gel cards, sample tubes, and reagents
· Capacity for 16 DG Gel cards , 2 bottles of DG Gel Sol diluent, 8 vials of reagents (5 and 10 mL), 32 dilution tubes (13 mm), and 16 sample tubes (16 mm)
· Completely adoptable to suit both left-handed and right-handed operators
55.5 x 34 x 75 cm; 21.8 x 13.4 x 3 in
(W x D x H)
0.75 kg; 1.65 lb

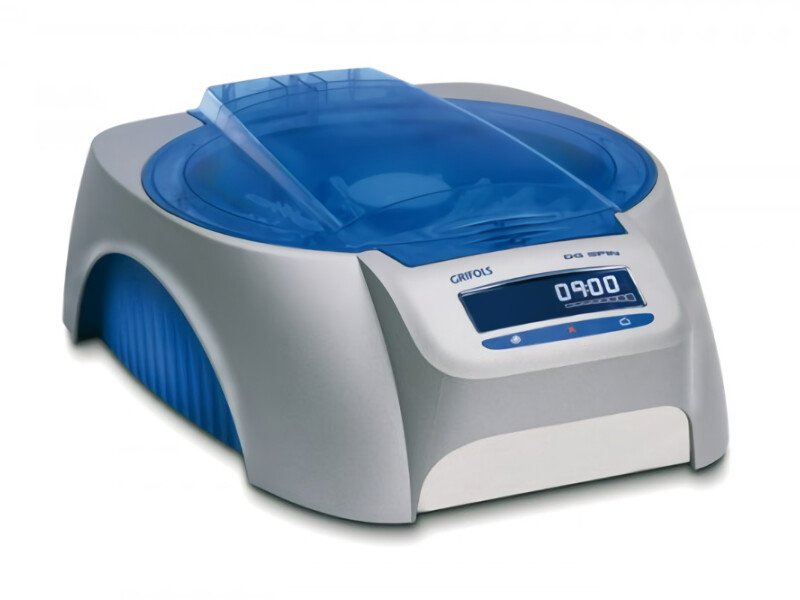

DG SPIN GRIFOLS

Digital centrifuge
· Simultaneous centrifuge of up to 24 DG Gel cards
· Removable and exchangeable spinning head
· Pre-defined centrifuge parameters
· Digital on-screen display
· Automatic detection of incorrect placement of DG Gel cards on the spinning head
41 x 52.5 x 18 cm; 16 x 21 x 7 in
(W x D x H)
9 kg; 20 lb

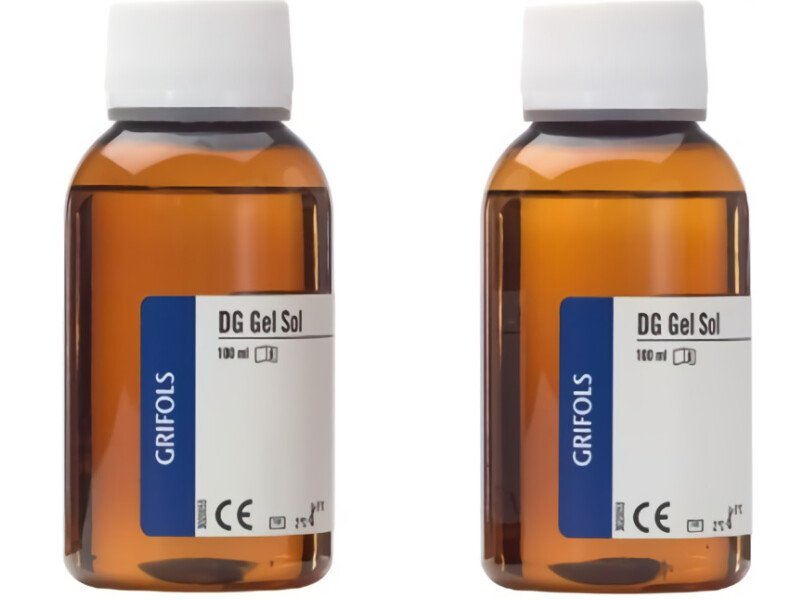

DG Gel Sol 2 × 100 mL, Grifols

- 1 Box berisi 2 × 100 mL cairan LISS
- Menggunakan pengawet Trimetroprim dan Sulfamethoxazole
- Suhu penyimpanan 2 – 8 °C
- Expiry date 18 bulan dari tanggal produksi
DG Gel Coombs 2 × 25’s, Grifols (Spain)

- Box berisi 2 rak, masing-masing rak berisi 25 kartu (50 kartu)
- Setiap kartu Liss/Combs (AHG) terdiri dari 8 mikrotube
- Masing-masing mikrotube berisi gel dan polyspecific AHG yang terdiri dari anti IgG dan anti C3d
- Dapat dipakai untuk semua reaksi immunohematology yang butuh AHG
- Unique double-decker rasck saving storage space
- Suhu penyimpanan 2 – 25 °C
- Expiry date 12 bulan dari tanggal produksi
Single and Multiple Blood Collecting System

Top & Bottom System
Sistem kantong darah atas & bawah tersedia untuk memastikan pemisahan aman ke setiap komponen darah.
- sampling pouch
- Needle Protector
- Ultra Smooth Needle
- Sampling Port
Blood & Reagent Storage

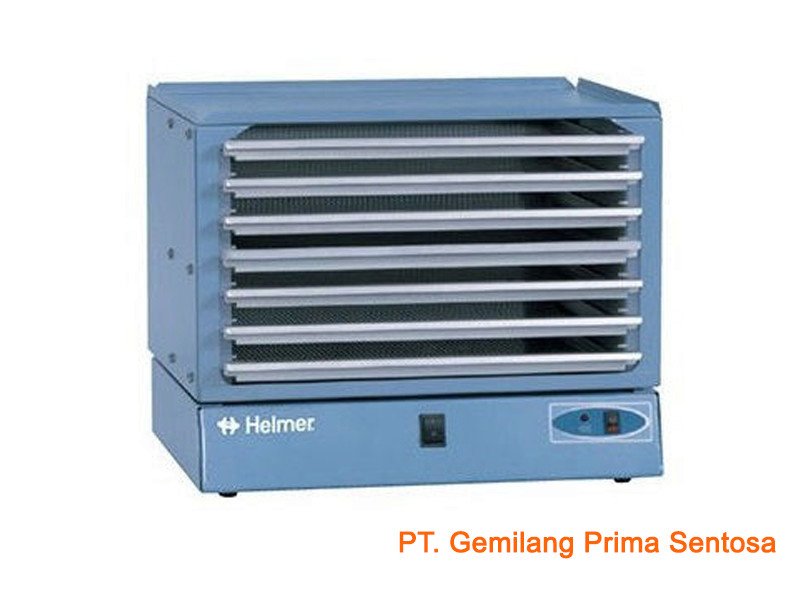

Platelet Agitator PF48-i
Alat untuk meresuspensi thrombosit hasil pemutaran sebelum ditransfusikan ke pasien
Spesifikasi alat adalah sebagai berikut :
-
Material eksterior, interior dan laci terbuat dari
-
Galvanised Steel dengan Bacteria-Resistant Powder Coating
-
Terdiri 7 laci yang dapat ditarik, 1 laci stasioner di bagian atas
-
Laci berlubang-lubang (perforated drawer) untuk sirkulasi udara
-
Dilengkapi dengan alarm
-
Sertifikasi dari CE dan USFDA
Kapasitas 48 kantung darah / 16 Bag apheresis
Blood & Reagent Storage

Platelet Incubator PC-3200h
Alat untuk menyimpan thrombosit pada suhu idealnya 22ºC
Spesifikasi alat adalah sebagai berikut :
- 1 pintu dari tempered glass dan dilengkapi dengan kunci
- Dilengkapi dengan digital microprocessor controller agar pengaturan suhu dapat presisi
- Forced air circulation agar keseragaman suhu di dalam incubator dapat dijaga +/- 1 derajat Celsius
- Material eksterior, interior dan pegangan terbuat dari Galvanised Steel dengan Bacteria-Resistant Powder Coating
- Auto-Stop agar platelet agitator berhenti ketika pintu dibuka dan kembali bergerak ketika pintu ditutup.
- Sistem Pendinginan 0,5 HP Air-Cooled, R134A Non-CFC
- Dilengkapi alarm (visual dan suara) dengan back up baterai
- Dilengkapi dengan chart recorder dengan back up baterai
- Sertifikasi dari CE dan USFDA
Dipakai Bersama dengan 3 x PF-96i (dijual terpisah)
Blood & Reagent Storage

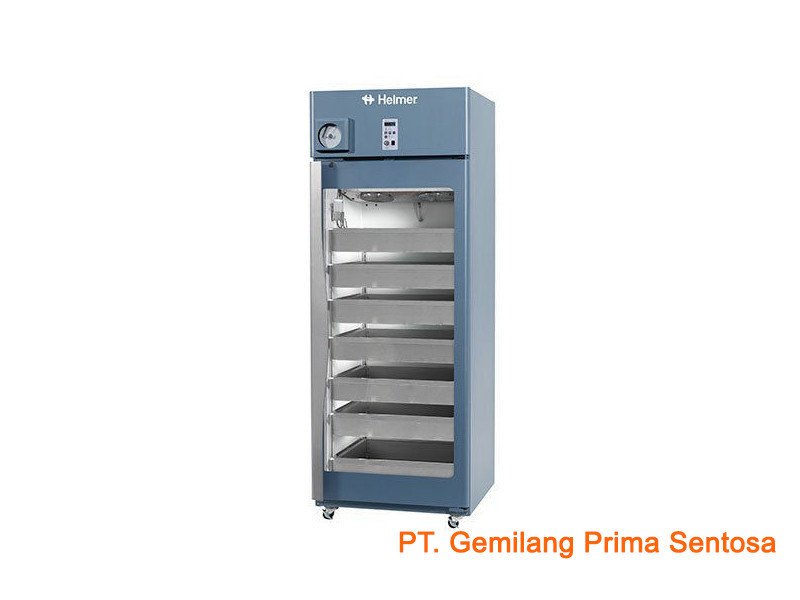

Blood Bank Refrigerator HB125
HB125 adalah Horizon Series ™ Blood Bank Refrigerator satu pintu dengan kapasitas 504 kantong darah. Menawarkan pengontrol suhu dengan alarm / monitor, keseragaman suhu maksimum, dan konstruksi kabinet superior.
- Terdiri dari 1 pintu , dua lapis kaca dengan pemanas
- Forced air circulation system sehingga memelihara keseragaman suhu chamber +/- 1ºC dan mengembalikan suhu dengan cepat setelah pintu dibuka
- Automatic fan shut off jika pintu terbuka
- Balance flow system sehingga tidak perlu siklus defrost sehingga suhu selalu stabil
- Sistem Sure-Seal untuk menutup pintu secara otomatis jika posisi pintu terbuka kurang dari 200
- Bacteria-Resistant Powder Coating pada exterior, interior dan pegangan pintu
- 5 laci stainless steel yg dapat ditarik, max beban 46 kg / laci
- Dilengkapi keylock, alarm dan chart recorder
- Insulasi dengan Non-CFC Foamed Urethane
- Sistem Pendinginan 1/4 HP Air-Cooled, R134A Non-CFCExpiry date 18 bulan dari tanggal produksi
Blood & Reagent Storage

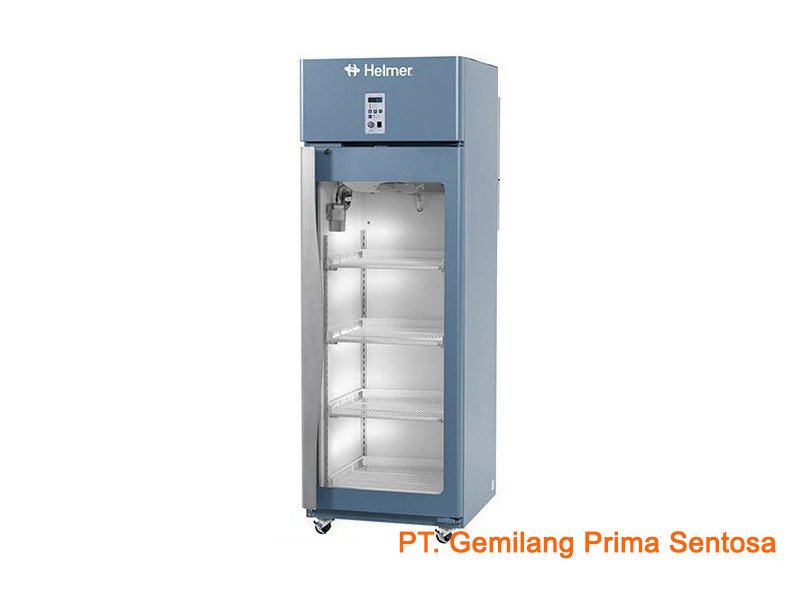

Laboratory Refrigerator HLR 111
HLR111 adalah Kulkas Horizon Seri ™ Laboratorium pintu tunggal. Menawarkan pengontrol suhu dengan alarm / monitor, keseragaman suhu maksimum, dan konstruksi kabinet superior.
- Terdiri dari 1 pintu dengan kaca dua lapis
- Menurunkan kelembaban agar mengurangi kondensasi pada box yg disimpan
- Forced air circulation system sehingga memelihara keseragaman suhu dan recovery yang cepat setelah pintu dibuka
- Digital microprocessor temperature controller
- Automatic fan shut off jika pintu terbuka
- Sistem Sure-Seal untuk menutup pintu secara otomatis jika posisi pintu terbuka kurang dari 200
- 4rak epoxy-coated yang bisa diatur tingginya dan dilengkapi pelindung samping dan belakang agar barang tidak mudah jatuh dari rak.
- Dilengkapi alarm suara dan visual
- Bacteria-Resistant Powder Coating pada exterior, interior dan handel pintu
- Insulasi dengan Non-CFC Foamed Urethane
Blood Processing

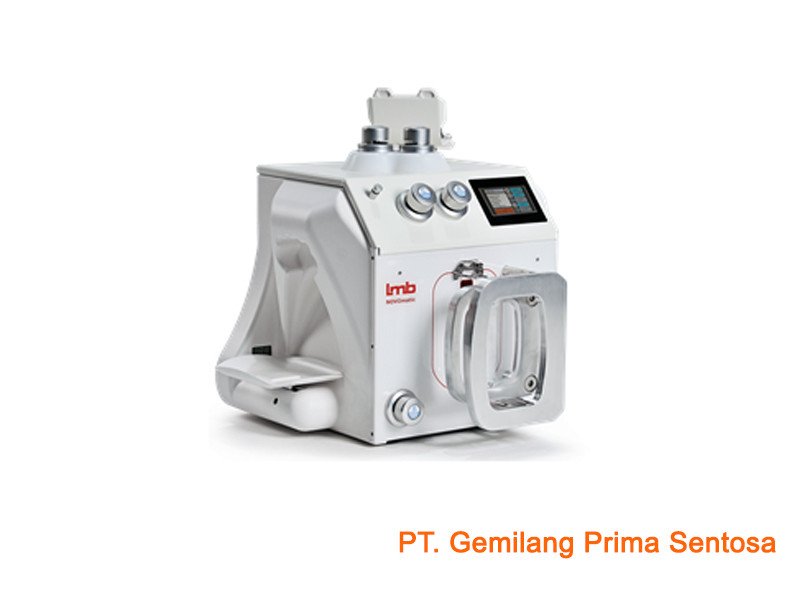

NOVOmatic
Precise separation of blood components
- Quick blood separation process and high recovery of thrombocytes
- Precise treatment of all Top/Top and Top/Bottom processes
- CRYO application and thrombocytes from Buffy Coat and PRP
- Adaptive colormatic sensor system for best possible distinction between red cells, thrombocytes and plasma
- Precise mechanics for long endurance
Features :
- Accomodate Top-Top and Top and Bottom Blood Bags
- 20 programs can be stored in the device
- Barcode reader can be connected
- Data transfer to host computer is integrated
- Touch screen display for menu controlling
- Double press for separating plasma and transfer of SAGM solution
- Motor-driven press movement ( no air compressor needed )
- Squeezing out air from plasma bag
- Very precise volume control of Buffy Coat ( thrombocytes )
- Scale pan for easy bag placement
- Self adjustable clamp for all kind of blood bag tubing
- Double press system
- Bottom RC bag balance
- Data transfer LAN / RS 485 Sertifikasi dari CE dan USFDA

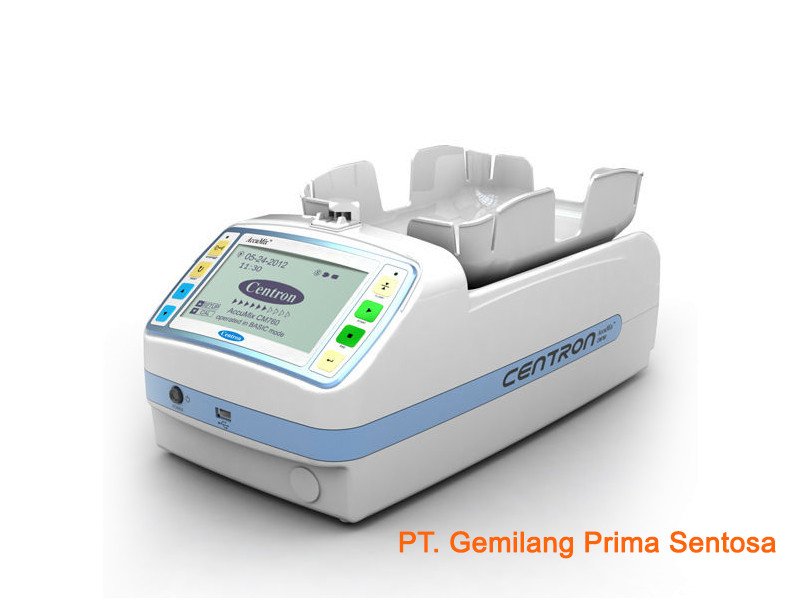

Blood Collection Mixer CM760

Alat untuk menimbang dan mencampur darah secara akurat dengan anti koagulan pada kantong darah pada saat pengambilan darah (aftab)
-
Pengaturan volume darah donor 5-1000 ml
-
Display berat 0-99 gr dg kenaikan(+) 1 gr
-
Toleransi volume ≤3ml, berat ≥4gr
-
Pengaturan target volume 10-600ml, +5ml
-
Alarm & display pentunjuk suara untuk baterai lemah, aliran darah lambat, tray tidak bergerak, waktu pengambilan lama
-
Kecepatan gerakan tray 15/20/30/40/45 RPM
-
Display LCD 5inch, mudah dan komunikatif
-
Power supply : 18 VDC, 1,67A, adapter 100-240 VAC, 50/60 Hz, 1A

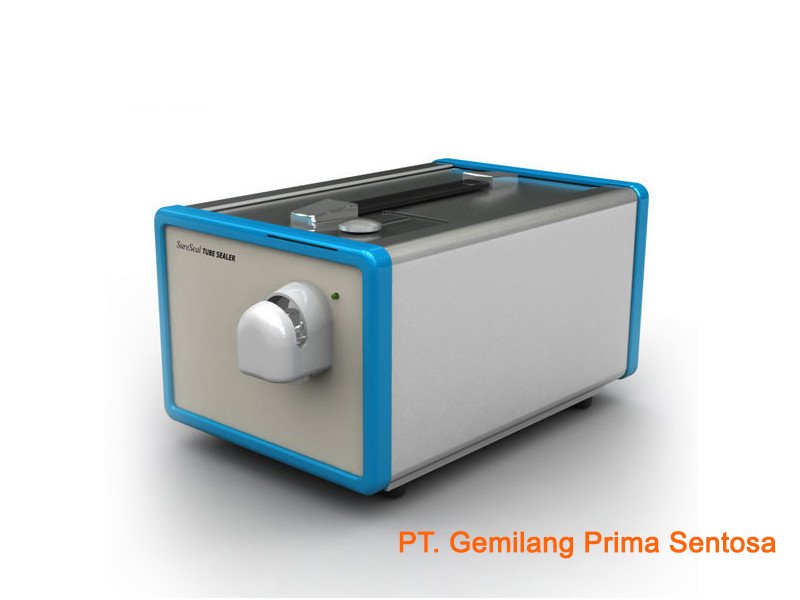

SureSeal Tube Sealer SE250

Features
-
AC-powered, with handheld sealing unit
-
Ergonomic design with standard 1.8 meters (6 ft) cable
-
Seals wide range of blood bag tubing - good for tubing diameter 2-6 mm (1/4")
-
Fast sealing in one second / No warm-up required
-
Makes seals with a notch at the center for easy segmenting of tubing
-
Head protector is detachable for sealing head cleaning
-
Suitable at blood collection sites or laboratories where multiple users should share a machine
Optional and Additional
-
Multi-functional remote control unit
-
Dual barcode scanner system
-
Wireless data transfer (CMD Software)
-
Emergency onboard battery
-
Large capacity battery pack for portable use
-
SureSeal™ tube sealer integration ready
-
Sample tube holders hold up to 6 sample tubes
-
Secured stackable storage – Carrying Case Pro

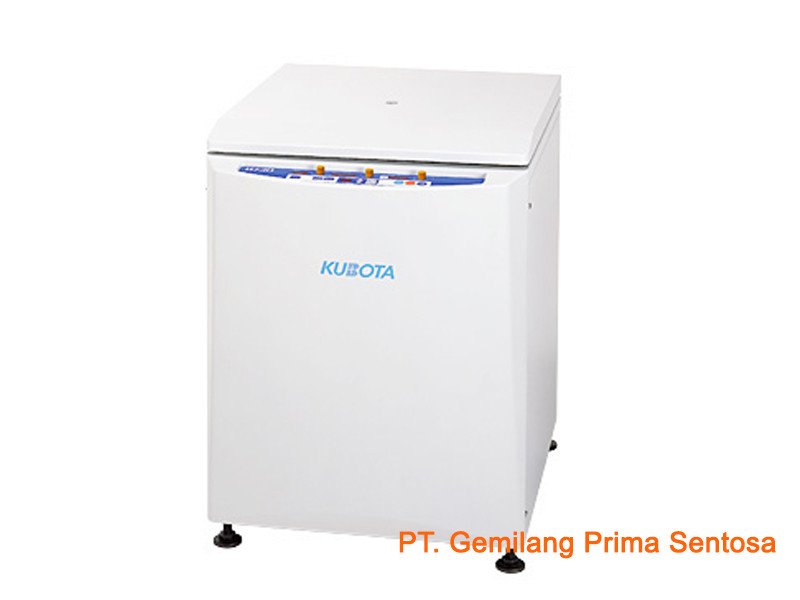

Kubota 8730 Standing Large Capacity Refrigerated Centrifuge + Accesories

-
High Capacity Refrigerated Centrifuge, from 6mL tubes to 1L bottles, or blood bags
-
Ideal for clinical labolatory testing
-
1 high capacity swinging bucket rotor and 2 multi-purpose swinging bucket rotors are available.
Specifications
-
Max. Speed4,000 rpm
-
Max. RCF4,150 xg
-
Max. Capacity4,000 mL
-
Temperature Setting-20 to +40°C
-
Dimensions, Weight64 x 78 x 86 cm (WxDxH), 217kg
-
Power Requirements220~230V10%, 20A. 50/60HZ

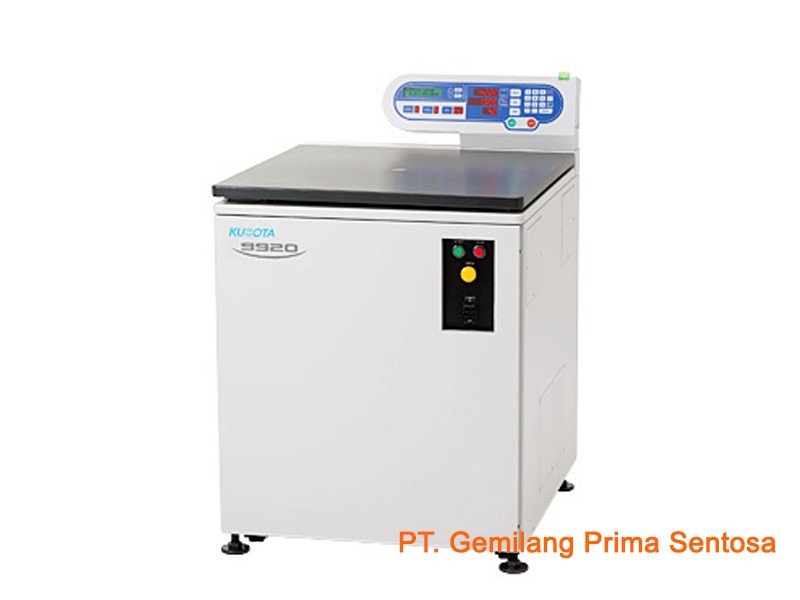

Kubota 9920 Standing Large Capacity Refrigerated Centrifuge + Accesories

-
Large Capacity Refrigerated Centrifuge, from 6mL tubes to 1L bottles, or blood bags
-
Ideal for separating blood into components
-
4 bloodbags/high capacity swinging bucket rotors, 1 swinging bucket rotor, and 1 angle rotor are available.
Specifications
-
Max. Speed7,000 rpm
-
Max. RCF11,290 xg
-
Max. Capacity6,000 mL
-
Temperature Setting-9 to +40°C
-
Dimensions, Weight73 x 83 x 108 cm (WxDxH), 370kg
-
Power Requirements220~230V10% 30A, 50/60Hz

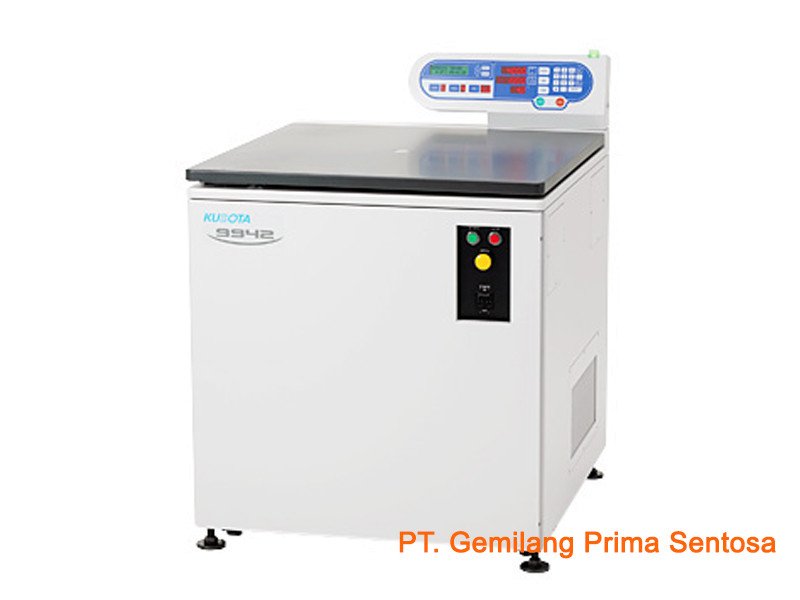

Kubota 9942 Standing Large Capacity Refrigerated Centrifuge + Accesories

-
Large Capacity Refrigerated Centrifuge, from 200mL blood bags to 500mL blood bags
-
Ideal for separating blood into components
-
1 blood bags swinging bucket rotor are available.
Specifications
-
Max. Speed4,000 rpm
-
Max. RCF5,240 xg
-
Max. Capacity12 x blood bags
-
Temperature Setting-9 to +40°C
-
Dimensions, Weight81 x 91 x 108 cm (WxDxH), 450kg
-
Power Requirements220~230V10% 40A, 50/60Hz

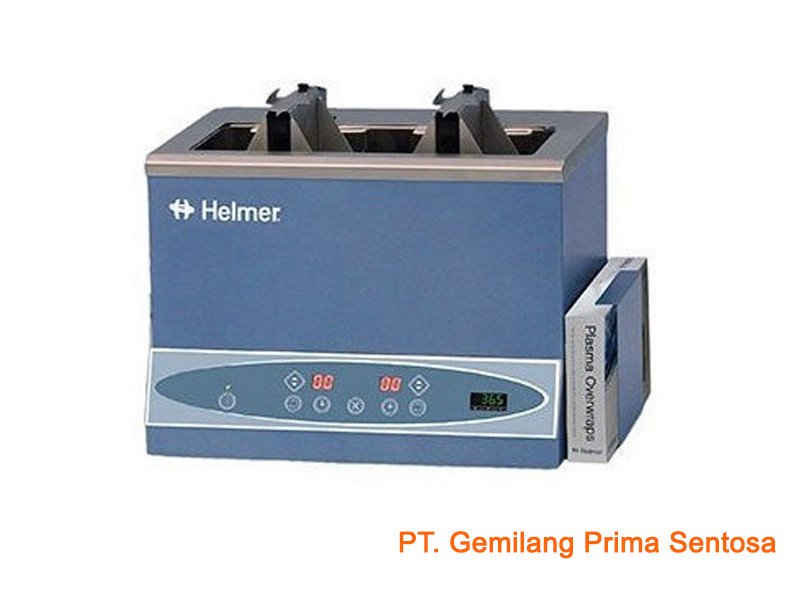

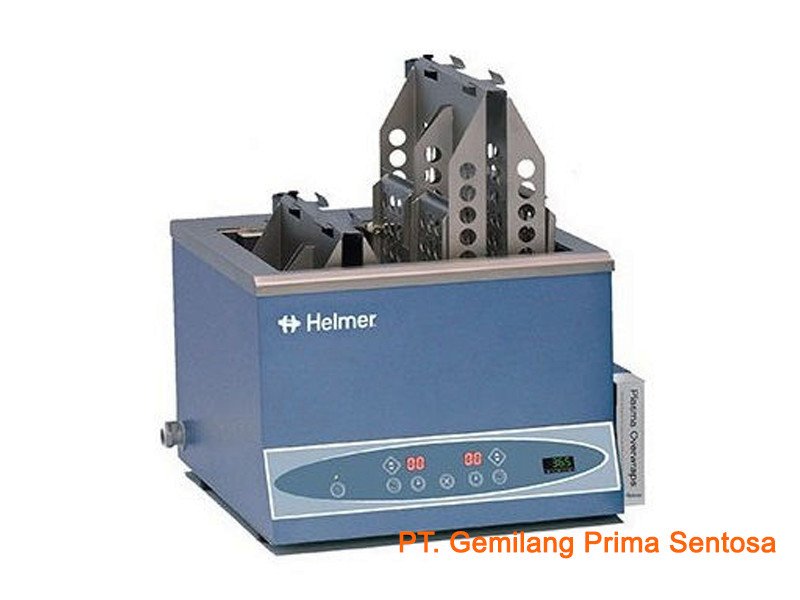

DH8 QuickThaw® Plasma Thawing System

The QuickThaw DH8 uses both controlled temperature and agitation to substantially reduce thaw times while ensuring the safety of your plasma. It is convenient and easy to operate, allowing you to load, program, and walk away. The compact size of the DH8 conserves space on your benchtop while allowing you to thaw up to 8 bags of plasma. The dividers in the DH8 can be removed for thawing oversized units (wider than 6 inches).
- Rapid Thaw Times
-
Microprocessor temperature controller with audible and visual high temperature alarm
-
Independent controls and LED digital temperature display for each basket
-
Superior Construction
-
Overwrap Protection
DH4 QuickThaw® Plasma Thawing System

The QuickThaw DH4 uses both controlled temperature and agitation to substantially reduce thaw times while ensuring the safety of your plasma. It is convenient and easy to operate, allowing you to load, program, and walk away. The compact size of the DH4 conserves space on your benchtop while allowing you to thaw up to 4 bags of plasma.
- Rapid Thaw Times
-
Microprocessor temperature controller with audible and visual high temperature alarm
-
LED digital temperature display
-
Superior Construction
-
Overwrap Protectio

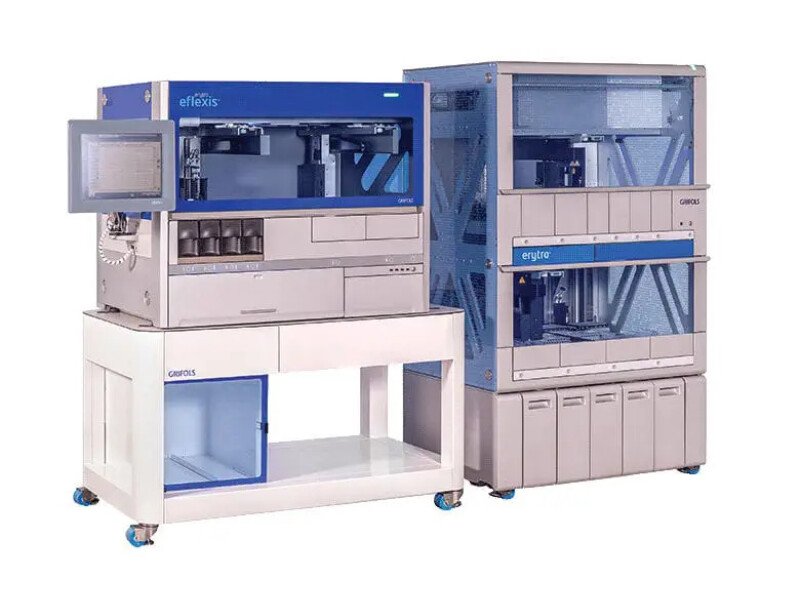

Erytra Eflexis

- Capacitiy: 2 lab confinguration option
- For peak hours: - 23 reagents (1 rack): 17 agitated, 5 non-agitated and 1 diluent (non-agitated reagents can be extended to 22) - 72 samples: 3 racks x 2 holders x 12 positions
- For more comprehensive menu: - 46 reagents (2 racks): 34 agitated, 10 non-agitated and 2 diluents (non-agitated reagents can be extended to 44)
- A fully automated, mid-sized analyzer to perform the pretransfusion compatibility tests using DG Gel technology with a smart and compact design for intuitive operations
- 110 cm (without monitor) × 71 cm × 91 cm
w × d × h

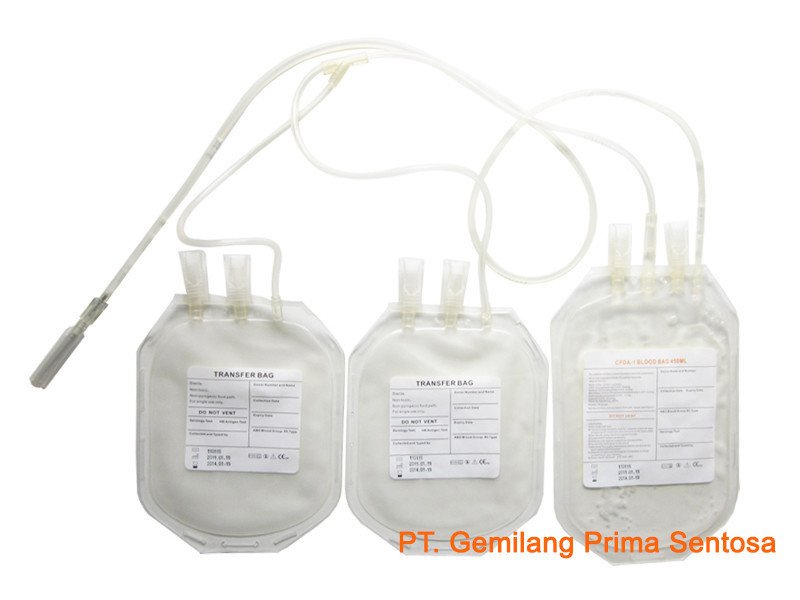

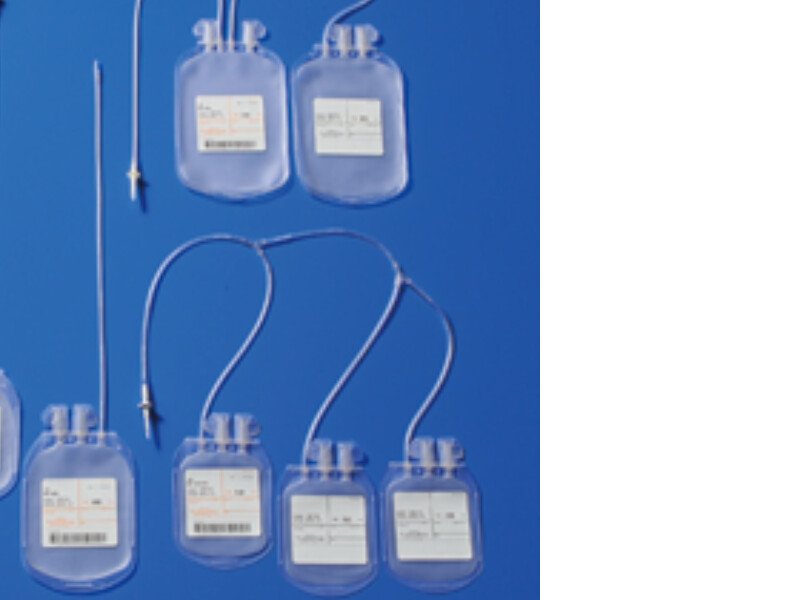

KARMI Kawasumi Blood Bag (Double Type & Triple Type)

KARMI Kawasumi Blood Bag (Double Type)
Packaging :
· Box 60 pcs
· 12 alumunium pouch @5 bags in individual sterile plastic pouch
KARMI Kawasumi Blood Bag (Triple Type)
Packaging :
· Box 50 pcs
· 10 alumunium pouch @5 bags in individual sterile plastic pouch
SD

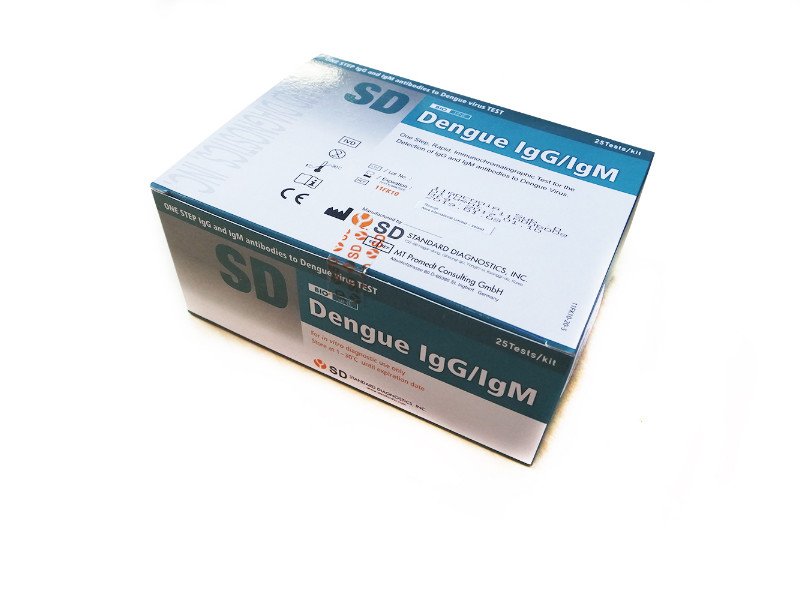

Dengue lgG - lgM

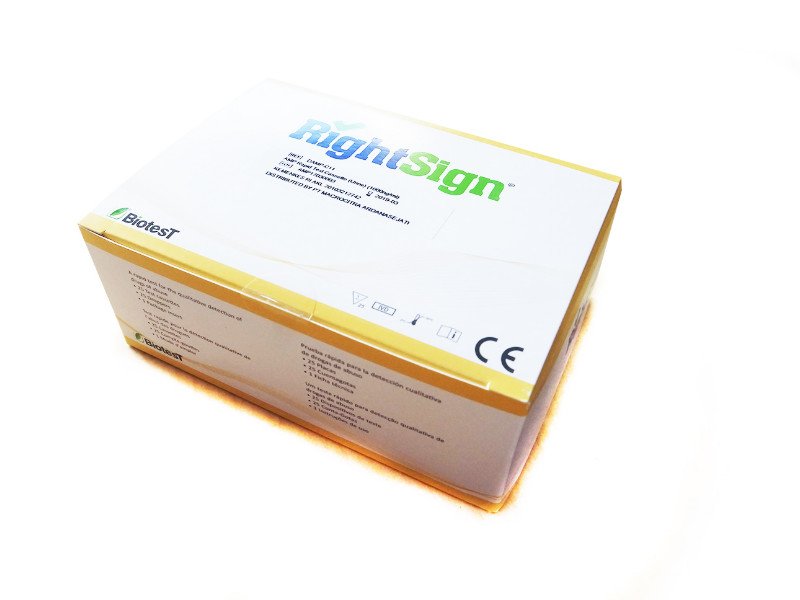

Right Sign

Test narkoba AMP

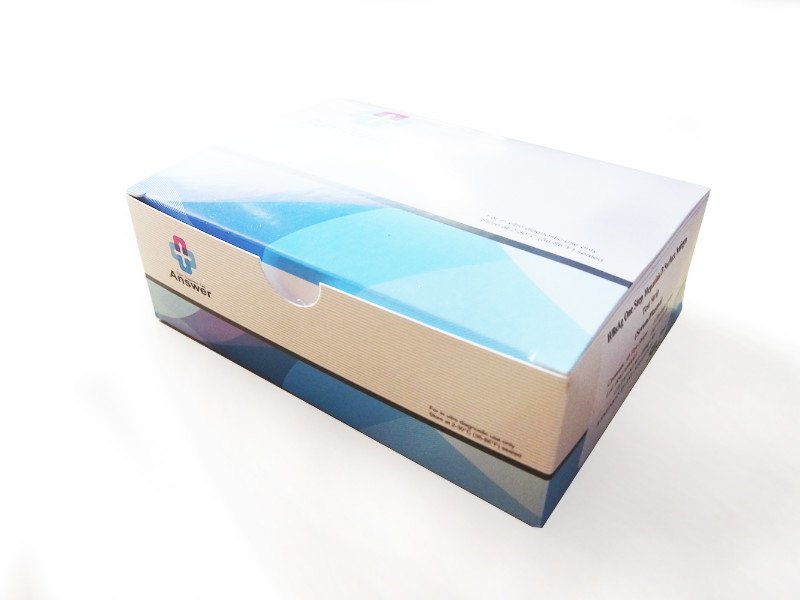

Answer

HBSAG
SD

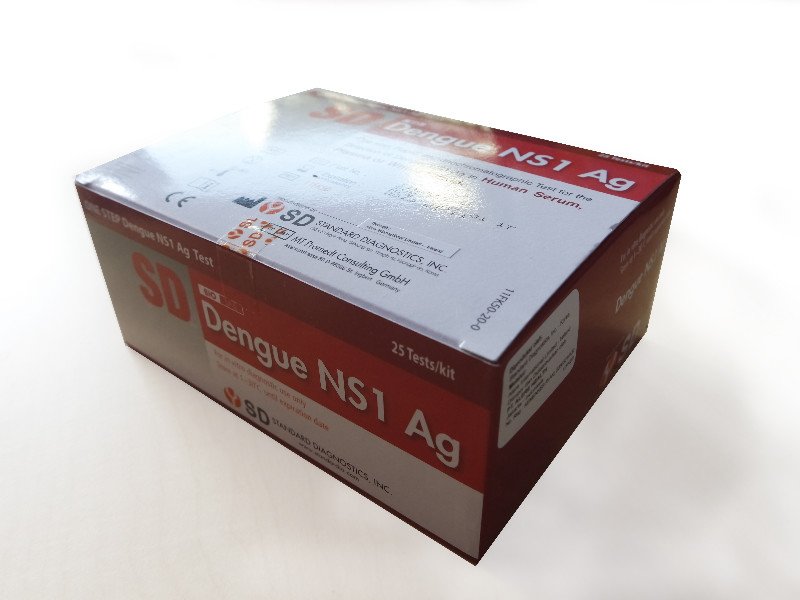

Dengue NS 1
Endo

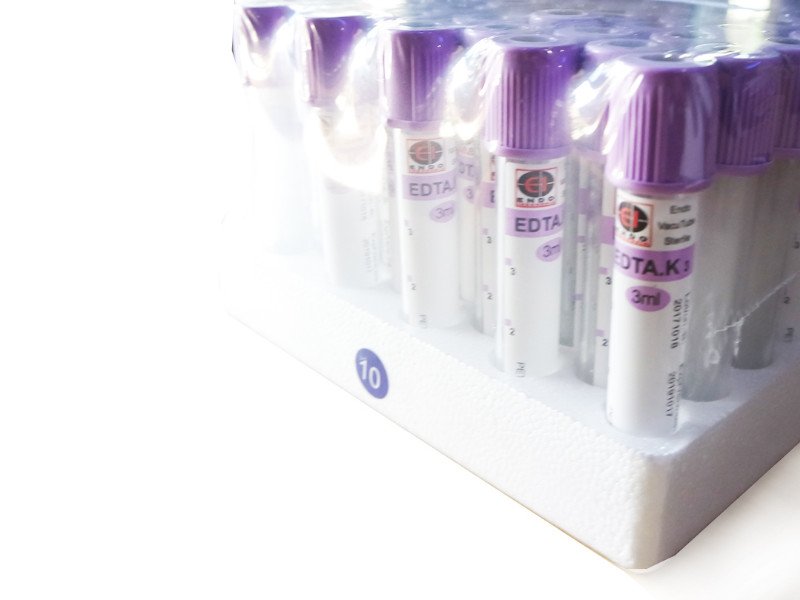

Tabung EDTA
Acon

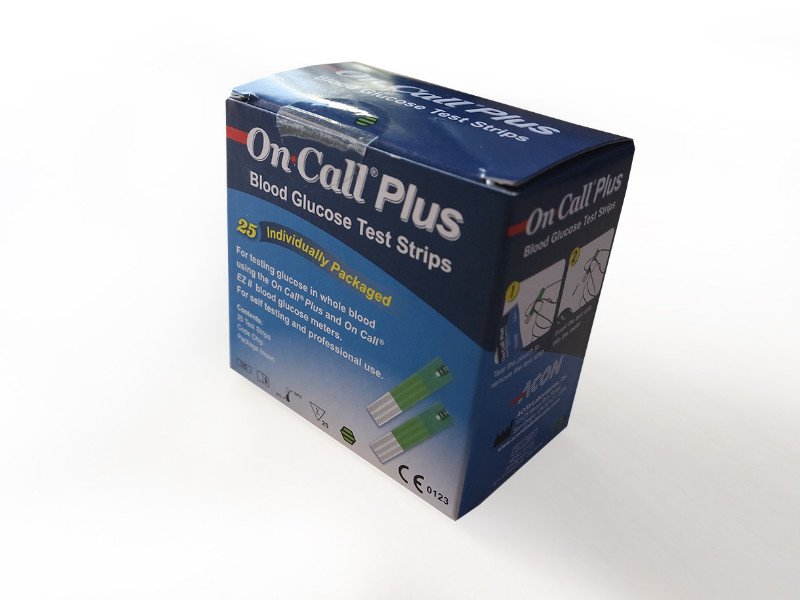

On call plus

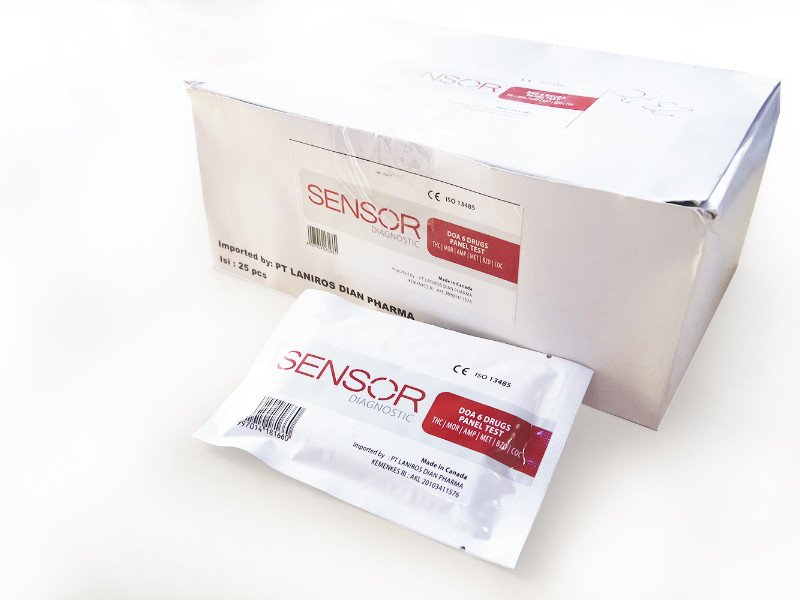

Sensor

Test narkoba GP

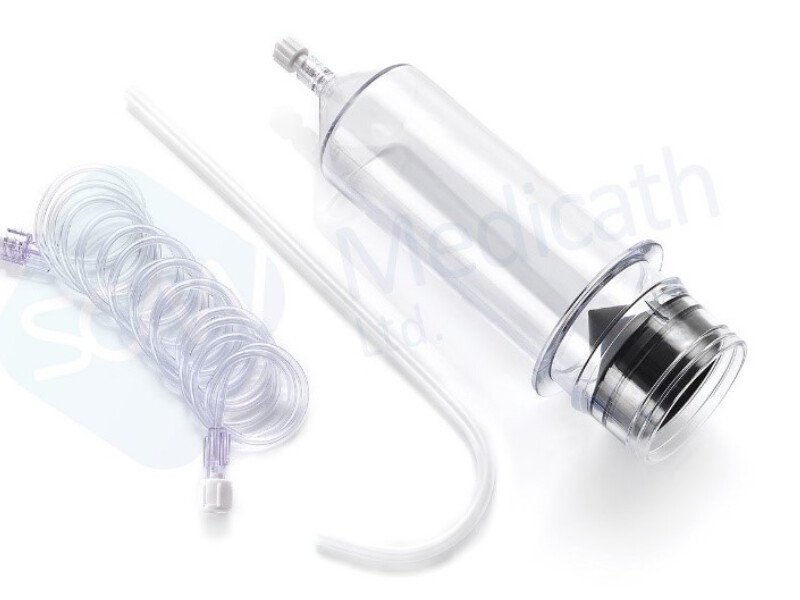

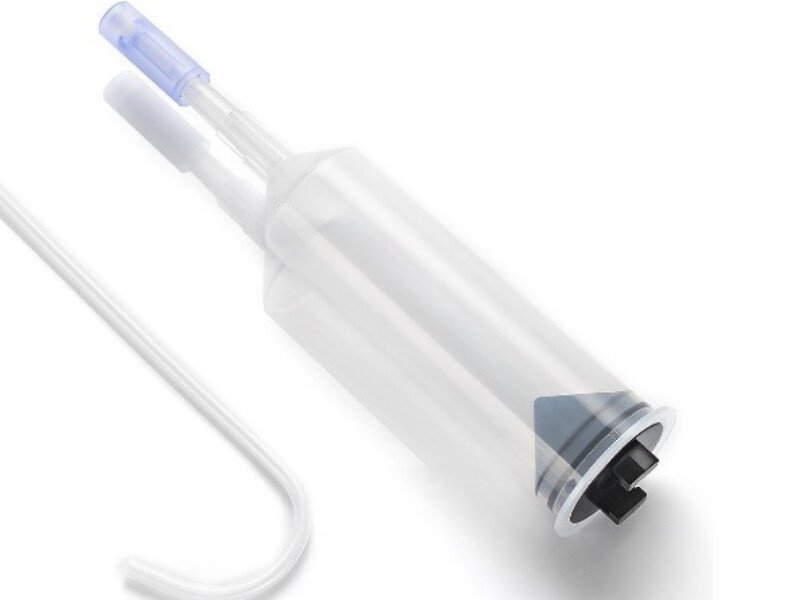

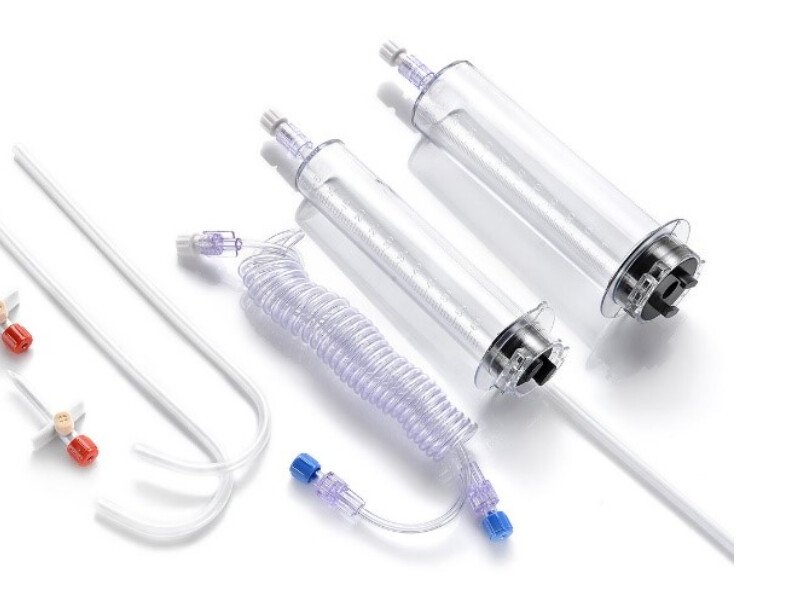

Syringe untuk CT Scan, MRI, dan Cathlab

Used for CT, MR, DSA-- lt could be used for computed tomographic scanning, angiography, Nuclear magnetic resonance and imaging. The contrast media carried is the gold standard for identifying cancerous tissue, presenting high-definition images for lesions;
• Great variety of Syringes; it could match so many injectors of nearly all manufacturers on the market;
• Maximum pressure up to 350 Pa or 1200 Pa;
• With advantages in the supply chain, we offer better price than peer products of the same quality;
• Connection tube - our export products are mainly with one check valve. Two check valves are available for special configurations;
• Good materials to provide more resistant to high temperature and high pressure, good permeability;
• Clear body provides excellent clarification and smooth as glass feeling; it could see air bubble and contrast medium
MRI

Cathlab


Ventilator Breathing System

55101 - Adult
- Digunakan untuk Ventilator dewasa dengan system basah/humidifier
- Compatible dengan semua merk ventilator

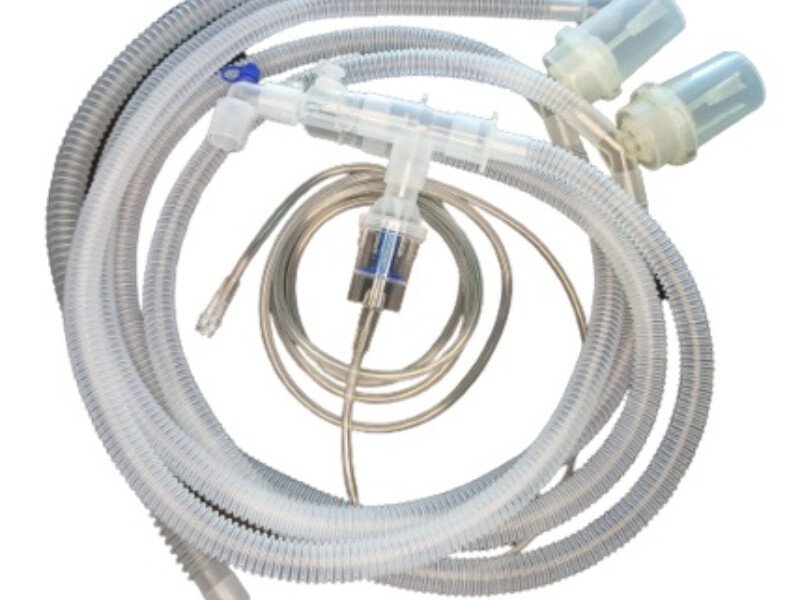

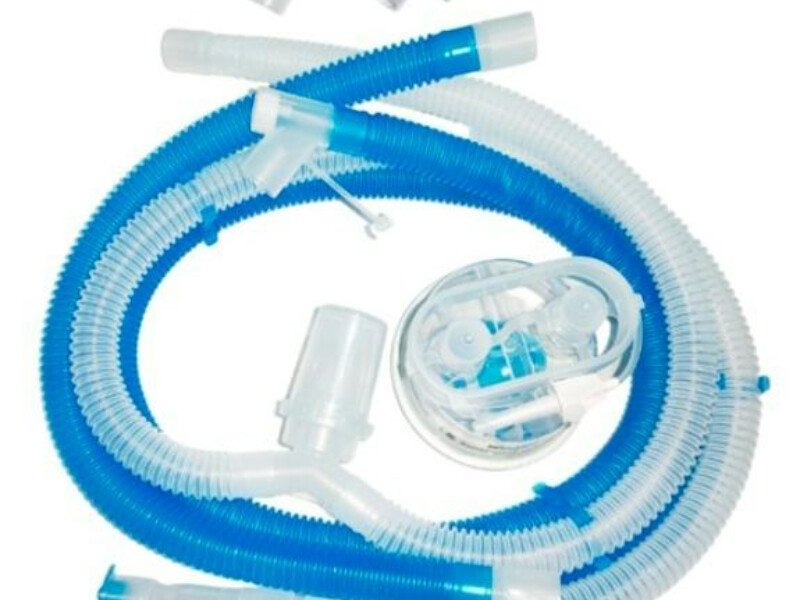

Ventilator Breathing Circuit w/ nebulizer

51110 – Adult
51140 – Pediatri
Respiratory Filters

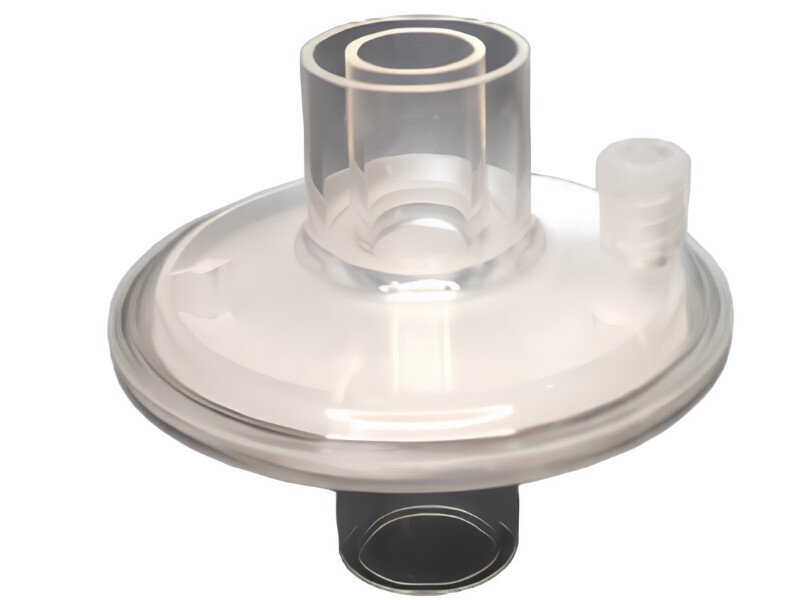

Bacterial Viral Filter
Respiratory Filters

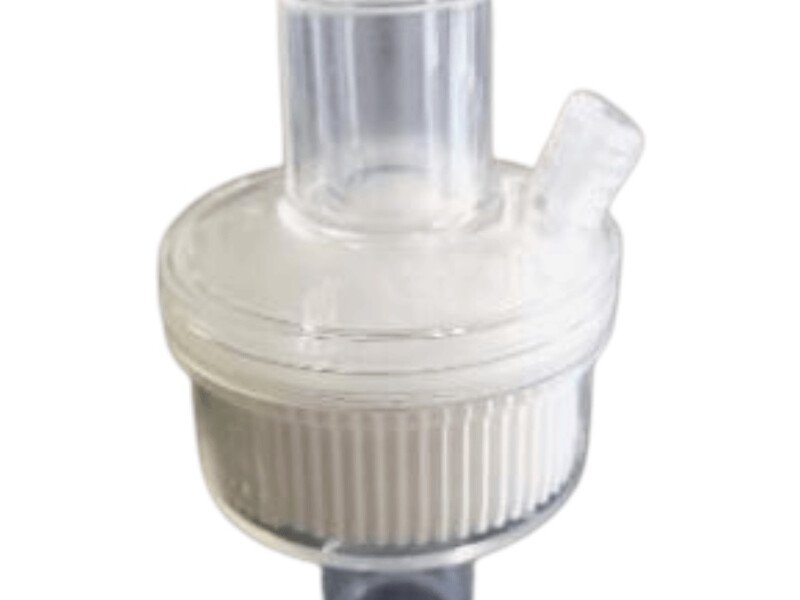

HME Filter

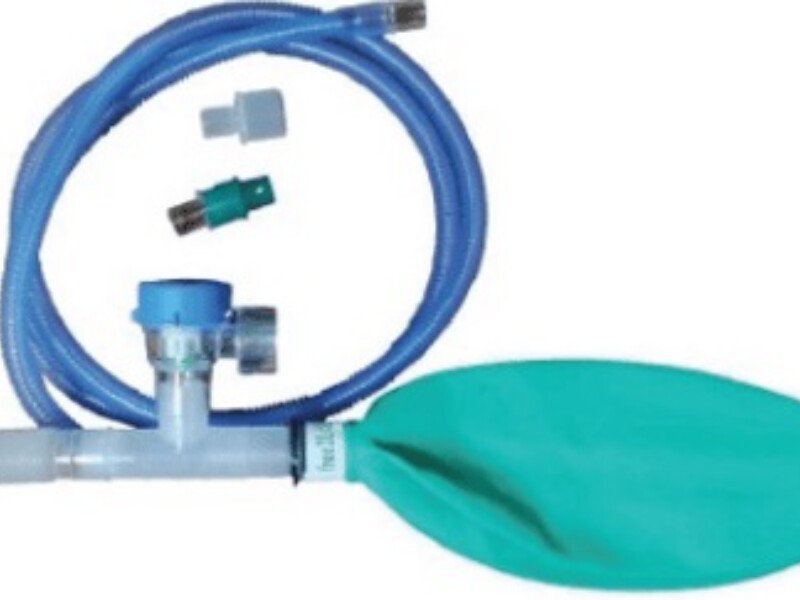

Jackson Rees

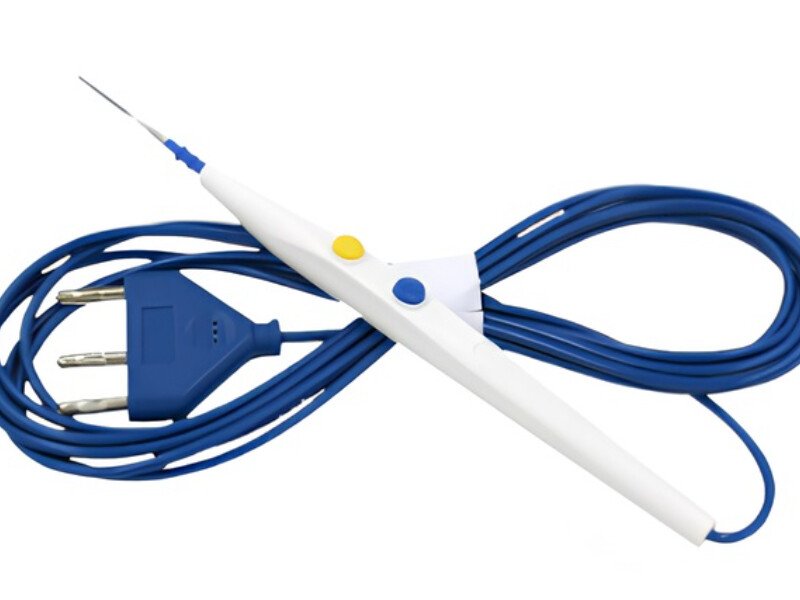

Electrosurgical Pencil Dispo

CP1001(SLM)

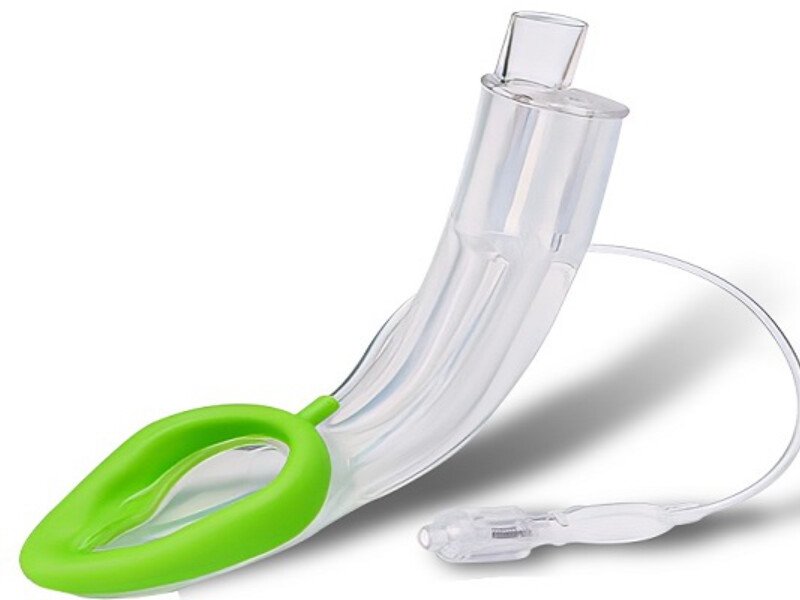

Laryngeal Mask Airway

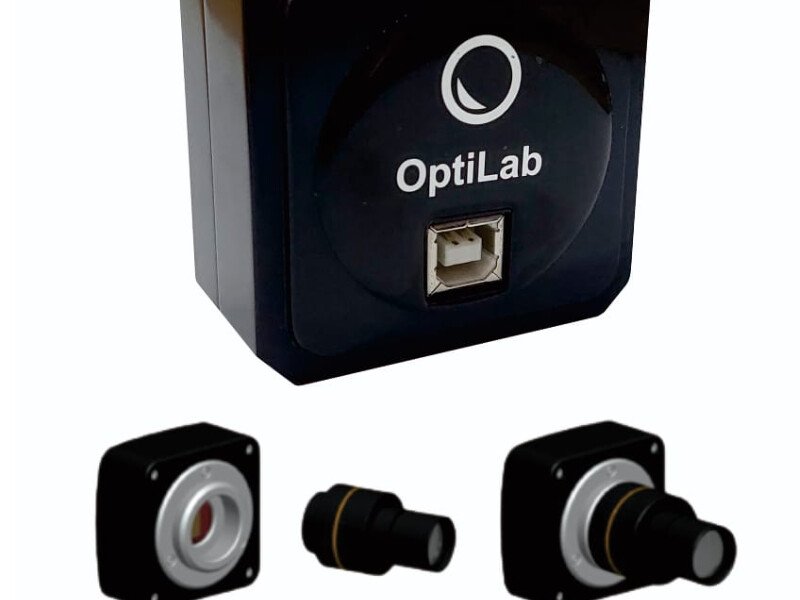

OPTILAB ADVANCE PLUS

Untuk mikroskop binokuler seperti BN107, NPL107, Olympus CX21, CX22, Cx23. Kontrol white balance dan Exposure time manual hingga 2 detik. Bagus untuk keperluan yang lebih expert seperti pengamatan objek yang agak gelap, yang tidak dapat ditangkap oleh Optilab versi advance

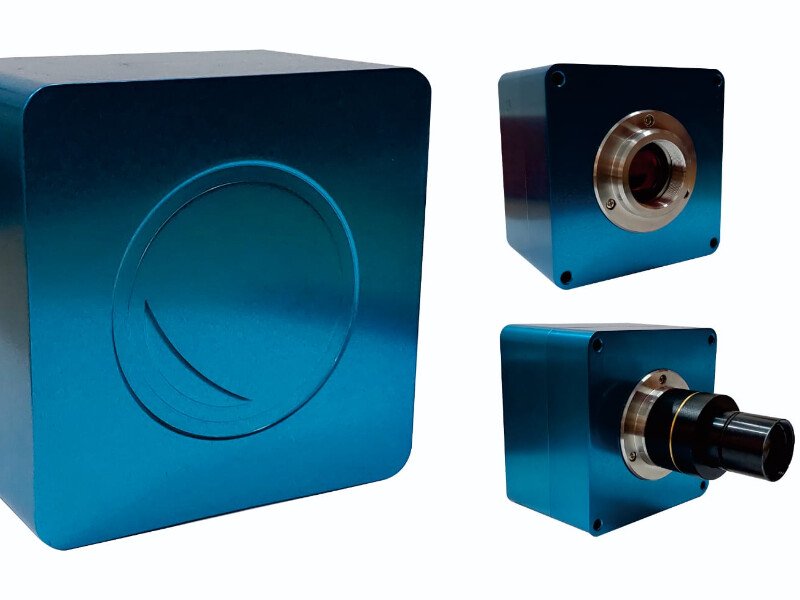

OPTILAB SIGMA

Untuk mikroskop binokuler seperti BN107, NPL107, Olympus CX21, CX22, Cx23. Kualitas sensor terbaik, gambar yang dihasilkan sangat tajam meskipun resolusi tidak terlalu besar. Output HDMI dan FPS yang tinggi menghasilkan live video yang realtime tanpa tunda. Melalui HDMI dapat langsung ditampilkan ke TV LED atau LED proyektor tanpa PC.

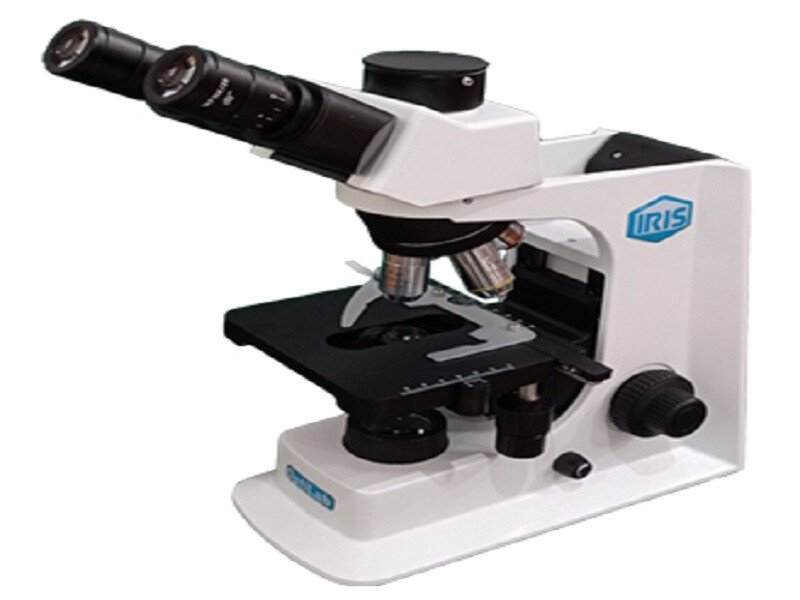

MIKROSKOP OPTILAB IRIS-4

OPTILAB IRIS-4 MIKROSKOP BIOLOGI TRINOKULER hadir dengan fitur utama Li-ion battery sehingga membuatnya lebih fleksible maupun disaat listrik padam. Dalam 1 (satu) set mikroskop OptiLab Iris-4 Mikroskop Biologi Trinokuler dilengkapi dengan lemari penyimpanan mikroskop (Microbox) yang sudah dilengkapi dengan Hygrometer (indikator suhu & kelembapan) serta penghangat suhu.
